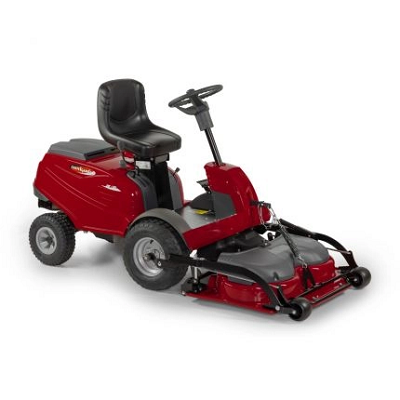

Castel Garden XM 130 Front Mower

Now Only

£2500.00

(VAT Included)

In Stock

*

Specifications

Weight - 197 kg
Cutting method - Combi – switch between Multiclip mulching and rear discharge
Cutting width - 85 cm
Deck lift - Manual
Cutting height adjustment - Manual with lever
Number of gears - 5 forward + 1 reverse
Transmission type - Mechanical
Transmission method - Lever-operated
Pack weight - 197 kg
Product weight     - 165 kg
Power source - Petrol
Engine Brand - Briggs & Stratton
Engine model - PowerBuilt 3130 AVS
Displacement - 344 cm³
Engine net power - 7.4 kW
Engine rotation speed - 3200 rpm
Battery Voltage - 12 V
Battery capacity - 18 Ah
Choke - Automatic
Engine cooling - Air
Fuel tank capacity - 3.6 l
Engine Oil tank capacity - 1.4 l
Maximum working area - 1500 m²
Traction - Front-wheel drive
Maximum speed forward - 9 km/h
Steering wheel    - Adjustable
Steering type - Rear wheel
Seat type - Castelgarden classic
Seat adjustment - Locking knobs
Front wheel size - 16×6.00-8
Rear wheel size - 13×5.00-6
Power assisted steering - Mechanical
Measured sound pressure level at operator ear dB(A) - 86
Measured sound power level dB(A) - 99
Max vibration on steering wheels (m/s2) - < 3.2
Max vibration on driver's seat (m/s2) -    < 0.9

Description

The Castelgarden XM 130 front-cut ride-on mower has a 3130 AVS Briggs & Stratton PowerBuilt (7.5 kW @ 3200 rpm) engine. Ergonomic controls and front wheel drive ensure comfortable handling. This ride-on mower can be used with an 85 or 95 cm cutting deck, connected with the RAC (release and connect) system supplied with the machine.
